MTXhigh-3w
| LED Quantity | 3 |
| Input voltage | 12v DC |
| Input current | 350mA |
| Input Power | 3w |
| Lumens | 165 |
| Colour temp | 3500-9000K |
| Working Temp | -20-40C |
| Life Span | >50,000 hours |
| Material | ABS & PC lens |
| Dimensions | 145x30x18mm |
| IP Rating | IP65 |
| Per string max | 20 |
| Weight | 15g |
High Power module
MTXhigh-1.5w
| LED Quantity | 1 |
| Input voltage | 12v DC |
| Input current | 350mA |
| Input Power | 1.5w |
| Lumens | 165 |
| Colour temp | 3500-9000K |
| Working Temp | -20-40C |
| Life Span | >50,000 hours |
| Material | ABS & PC lens |
| Dimensions | 45x30x18mm |
| IP Rating | IP65 |
| Per string max | 20 |
| Weight | 15g |
MTX LED Ltd
MTXhigh-side is an unique module that fits a unique sign application.
It has a custom lens on it which gives it a very far and wide spread of light.

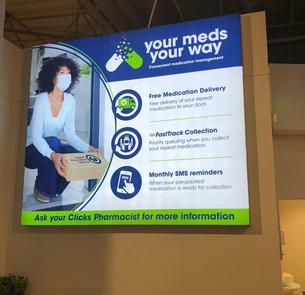

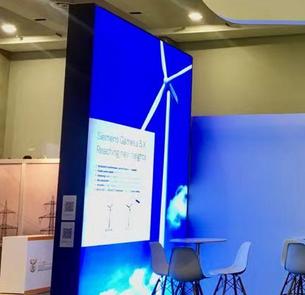

This makes it ideal for cabinet signs where there is no internal supports for module or lattice.

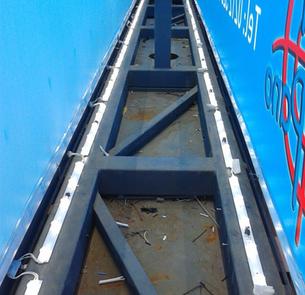

The custom lens means you can mount them around the edge of the sign and yet get an even spread of light across the print.
The MTXhigh-side is a 1.5w or 3w high power LED modules to give it extra punch across the light box.
