Features
1. Powered by Epistar 5630 0.5Watt LED.
2. Wide viewing angle with even light output: 160-165 degrees

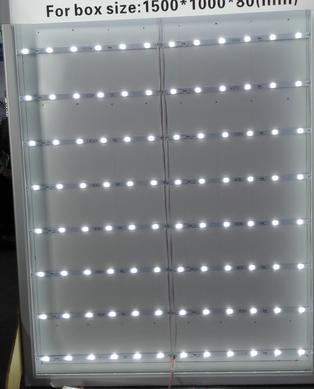

3. Backlighting to light boxes whose depth is more than 120mm.
4. Energy saving on lightbox illumination: 12.6Watt per ㎡
5. Cost effective on lightbox illumination
6. Lower light decay and long life span up to 35000 hours.
7. Waterproof, IP65, ideal for outdoor use.
8. Good color uniformity.
9. Easy installation and maintenance free.
10. Available single sided or double sided
| # of LEDs | 6/row |
| Lumens | 45/piece |
| Colour | 3500-9000K |
| Power | 3.6w/row |
| Voltage | 12v DC |
| Life span | 50,000 hours |
| PCB type | Aluminum |
| Row size | 500x15x4.5mm |
| IP rating | IP65 |
| Angle | 160 degree |
| Working temp | -40-60C |
| Max rows | 21 |
| row spacing | 10.5cm |
MTXLattice-6
MTXLattice-6
MTXlattice-6
LED Lattice
