MTX LED Ltd
MTXP5 or MTXP5P
LED type | 5mm straw hat |
Lumens | 15/pixel |
Colour | 3500-9000K |
Voltage | 5v DC |
Power | 0.1w/pixel |
IP rating | IP65 |
Life Span | 50,000 hours |
Size | 9x22mm |
Angle | 120 degree |
Working temp | -40-60C |
Max per string | 60 pixels |
MTXP8 or MTXP8P
MTXP5 or MTXP5P

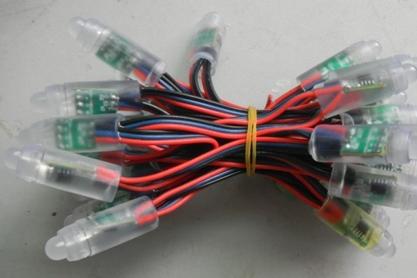

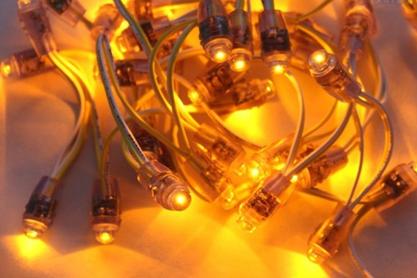

Pixel LEDs come in 5mm and 8mm.
They are ideal for creating points of light style signage.
Giving your sign a sparkling feel.

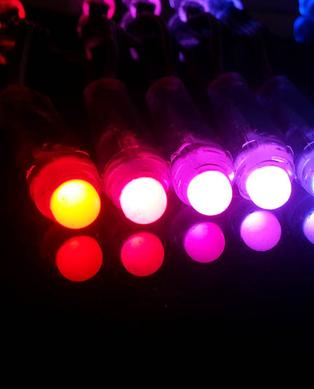

They are available in single colour, RGB or custom programmable version.
With custom program option, you can have the sign doing any combination of patterns or messages. It is only limited by your imagination.
see programmable pixel page
Each LED is IP65 approved and very easy to install.
Just drill a hole and push the LED pixel into the drilled hole.
If a pixel is ever damaged, it can be easily changed out.
LED Pixel
MTXP8 or MTXP8P
LED type | 8mm straw hat |
Lumens | 15/pixel |
Colour | 3500-9000K |
Voltage | 5v DC |
Power | 0.2w/pixel |
IP rating | IP65 |
Life Span | 50,000 hours |
Size | 12x25mm |
Angle | 120 degree |
Working temp | -40-60C |
Max per string | 30 pixels |
