MTX5630-3
| LED Quantity | 3 |
| Input voltage | 12v DC |
| Input current | 60mA |
| Input Power | 1.2w |
| Lumens | 50-60/LED |
| Colour temp | 3500-12000K |
| Working Temp | -20-40C |
| Life Span | >50,000 hours |
| Material | ABS & PC lens |
| Dimensions | 83x15x8mm |
| IP Rating | IP65 |
| Angle | 160 degree |
| Per string max | 20 |
| Weight | 11g |
5630 LED Module
MTX5050-3
| LED Quantity | 3 |
| Input voltage | 12v DC |
| Input current | 60mA |
| Input Power | 0.72w |
| Lumens | 54-60 |
| Colour temp | 3500-9000K |
| Working Temp | -20-40C |
| Life Span | >50,000 hours |
| Material | ABS & Epoxy |
| Dimensions | 68.2x19.5x5.7mm |
| IP Rating | IP65 |
| Angle | 120 degree |
| Per string max | 20 |
| Weight | 11g |
5050 LED Module
MTX LED Ltd
2835 LED Module
5050 LED is a 3 chip LED module that is the work horse of the industry.
It's lower cost yet high performance makes it ideal for many projects.
The casing is injection moulding to give it a robust housing.
The wire we use is 18awg which means longer runs with out power loss.

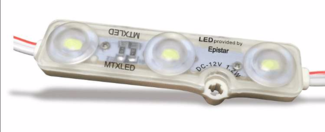

5630 LED is a new style LED module that provides much greater brightness compared to the 5050 modules.
The injected housing includes a lens to allow for 160 degree angle
The 5630 LED provides much greater output for just a small increase in power consumption.
Ideal for deeper sign or dark print signage.
MTX2835-1
| LED Quantity | 1 |
| Input voltage | 12v DC |
| Input current | 40mA |
| Input Power | 0.24w |
| Lumens | 30-40/LED |
| Colour temp | 3500-12000K |
| Working Temp | -20-40C |
| Life Span | >50,000 hours |
| Material | ABS & PC lens |
| Dimensions | 10x15x25mm |
| IP Rating | IP65 |
| Angle | 160 degree |
| Per string max | 50 |
| Weight | 5g |
